Hot Dip Galvanization 75M Painting High Mast Pole with Lifting System

Height

From 20 m to 80 m

Suit for

Airport ,seaport,plaza,stadium ,square,highway,
street way etc

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Torlance of the dimenstion

+- 2%

Power

400  W- 5000 W

Light panel

Various figure of slection ,material with hot dip galvanization steel
frame ,stainless steel ,special aluminum plate

Light Extension

Up to 30 000 m2

Lamp &Luminaire

Projector generally to be applied with safety grade IP65
Luminaire with high pressure sodium lamp of long lift and
high lighting efficiency ,or metal halide lamp with high CRI

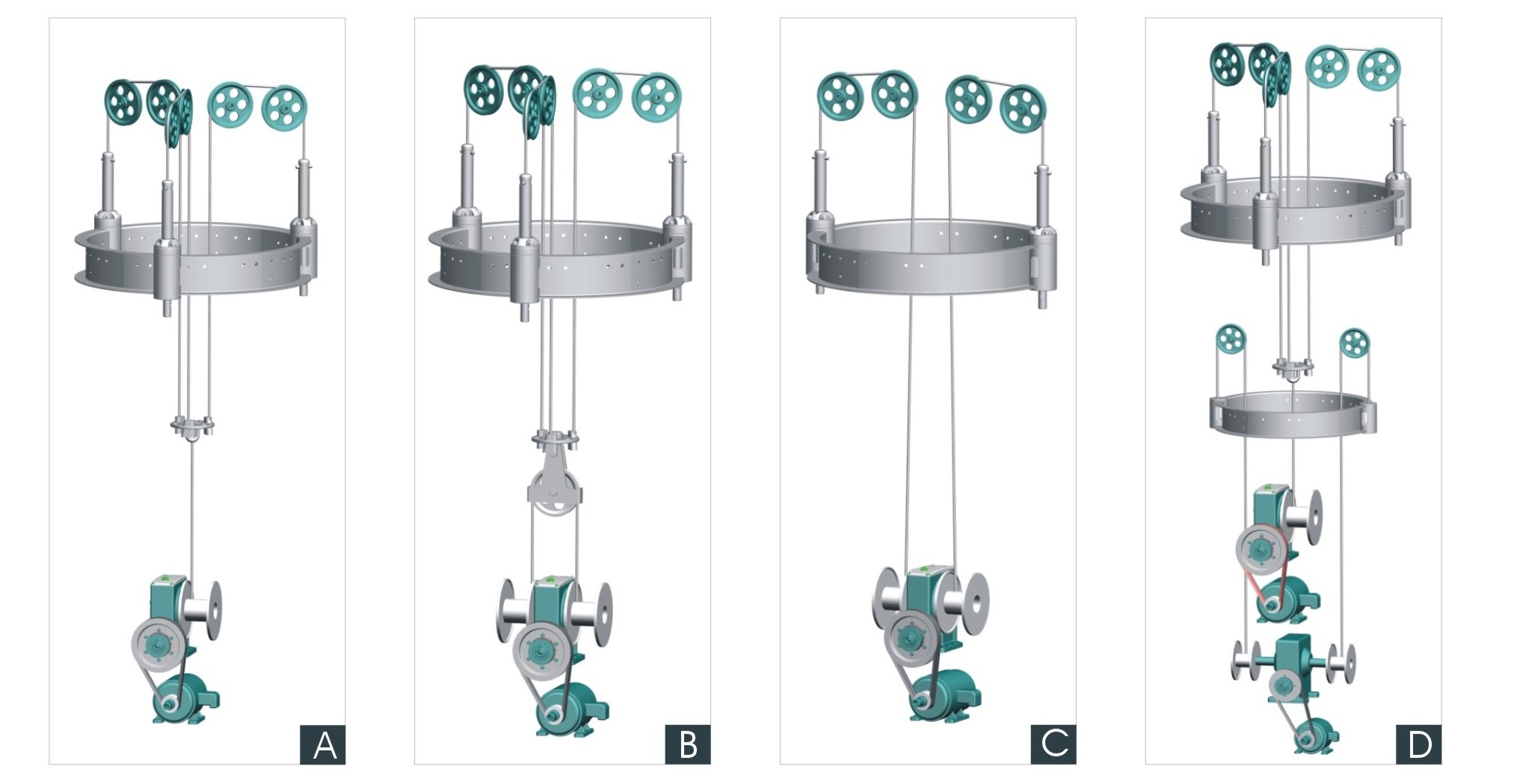

Lifting system

Lifter fixed in the inner of the pole with lifting speed of 3~5
meter per minute Euqiped e;ectromagnetism brake and break –proof
device,manual opeation applied under power cut

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required.

Joint of Poles

Insert mode,innerflange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Style

Aerial clog could be installed complied with clients desire to carry
camera or industrial antenna
