4 Sections 10mm High Mast Light Pole For Flyovers Stations City Squares

Name: 4 Sections 10mm High Mast Light Pole For Flyovers Stations City Squares
Brand: MilkyWay
Price: 1 USD

Buy cheap 4 Sections 10mm High Mast Light Pole For Flyovers Stations City Squares product

Brand Name : MilkyWay

Model Number : High Mast Pole

Certification : ISO9001/BV/

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : T/T, L/C at sight

Supply Ability : 300pcs per day

Delivery Time : 20 working days after received your payment

Packaging Details : As customer request

Product Name : High Mast Pole

Application : Plaza lighting

Galvanization thickness : Average 86um

Material : Q345

Lift time : 50 years

Warranty : 15 years

Contact Now

4 Sections 10mm 40M High Mast Pole for Plaza Lighting with Climbing Rung

Specifications:

Specification:	20-50 meters high mast pole
Type	high mast pole
Shape	conical, hexagonal and octagonal
Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 SS400, SS490ST52
Torlance of dimenstion	-0.02
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Standard	Octagonal Conical tapered column Certified by SIRIM QAS INTERNATIONAL. Approved by JABATAN KERJA RAYA MALAYSIA. Conforms to Standard: Pole design : BS EN 40 Material : BS EN 10025 S275 / JIS G3101 SS400 Welding : BS 5135 Galvanizing : BS 729 / ISO 1461 ASTM A 123
Length of per section	Within 14m once forming without slip joint.
high mast pole suit for	city square,wharf,stadium
Option of high mast pole	Height from 20m to 35m Flange mounted or planted type
Production Process of high mast pole	Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr →Galvanization or powder coating ,painting →Recalibration →Thread →Packages

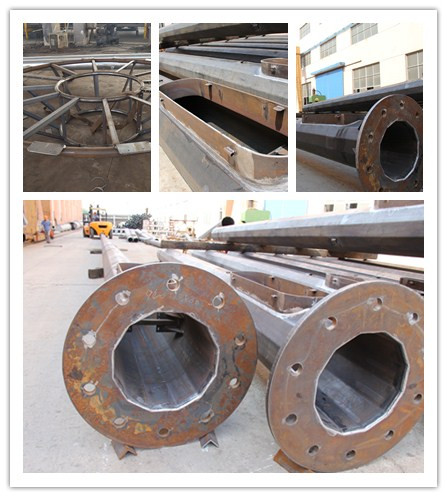

Descripition of material:
1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel

Feature:
Special designed for stadium to provide high-power, large-area lighting for facilities; Lighthouse is devided into fixed or lift, fixed poles set up an escalator inside for installation and maintenance purposes
Light source :400w-1000w sodium light

Application:
City squares, stations, ports, highways, stadiums, flyovers and etc

Standard:
Electric box protection level: IP23
Lamp protection level: IP54

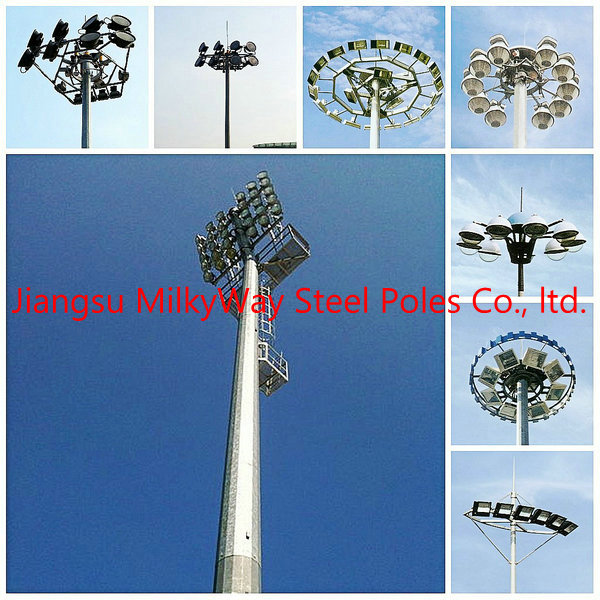

More Photos:

4 Sections 10mm High Mast Light Pole For Flyovers Stations City Squares

Product Tags:

high mast lighting pole

Park Light pole

4 Sections 10mm High Mast Light Pole For Flyovers Stations City Squares Images
