Q345 HDG Low Voltage Electric Metal Utility Poles 32M 20KN / Hot Rolled Steel Pole

Name: Q345 HDG Low Voltage Electric Metal Utility Poles 32M 20KN Hot Rolled Steel Pole
Brand: MilkyWay
Price: 1 USD

Buy cheap Q345 HDG Low Voltage Electric Metal Utility Poles 32M 20KN / Hot Rolled Steel Pole product

Brand Name : MilkyWay

Model Number : Steel Electric Power Pole

Certification : ISO9001/BV/

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : T/T, L/C at sight

Supply Ability : 300pcs per day

Delivery Time : 20 working days after received your payment

Packaging Details : As customer request

Product Name : Steel Electric Power Pole

Application : Power Transmission

Galvanization standard : ASTM A 123

Color : Silver

Maintain : Easy maintain

Cost : Lower cost

Material : Hot rolled steel

Contact Now

Q345 HDG Low Voltage Electric Power Poles 32M 20KN with Cross Arms

Description:

Standard Accessory

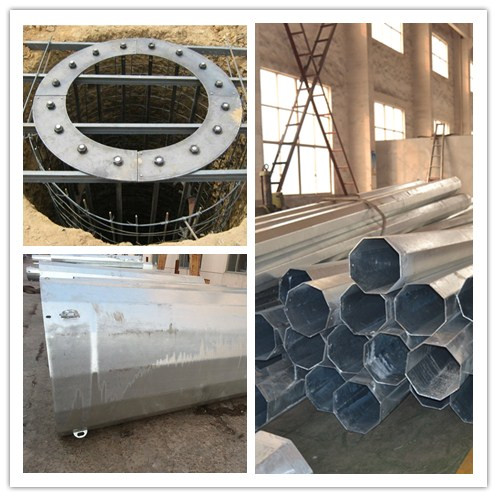

-Top plate
-Base plate
-Bottom strip
-Standard hole
-Climbing rung
-Anchor bolt
-Bitumen protection
-Painted marking
-Removable ladder
These are the standard accessories of the electric pole.

Q345 HDG Low Voltage Electric Metal Utility Poles 32M 20KN / Hot Rolled Steel Pole

Specification:

Height	From 9 meter to 100 meter
Suit for	Electric Power Transmission and Distribution
Shape	Polygonal or Conical
Material	Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm² As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400
Power Capacity	10kV to 220kV
Tolerance of the dimension	According to client’s requirement.
Surface treatment	Hot dip galvanized Following ASTM A 123, or any other standard by client required.
Joint of Poles	Slip joint, flanged connected
Standard	ISO 9001:2008
Length of per section	Within 14 meter once forming
Welding Standard	AWS (American Welding Society ) D 1.1
Thickness	1 mm to 36mm
Production Process	Raw material test → Cutting →bending →Welding (longitudinal )→ Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting → Recalibration →Packages
Packages	Packing with plastic paper or according to client’s request.

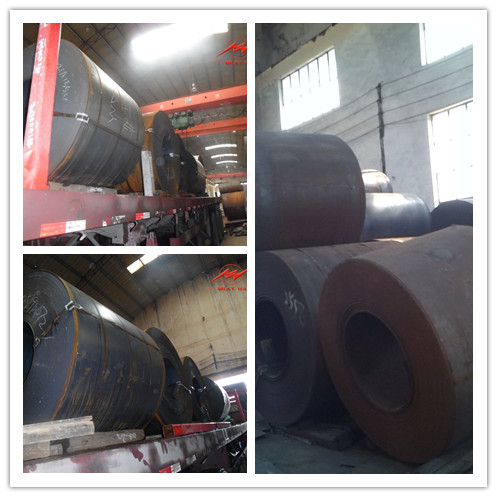

Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.

Q345 HDG Low Voltage Electric Metal Utility Poles 32M 20KN / Hot Rolled Steel Pole

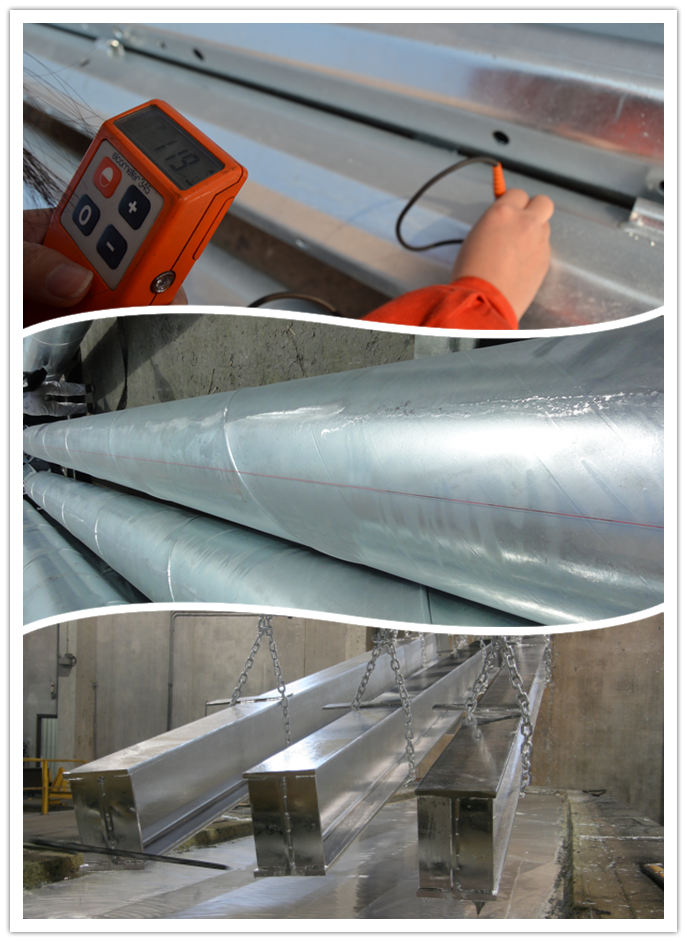

Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 86μm.

Q345 HDG Low Voltage Electric Metal Utility Poles 32M 20KN / Hot Rolled Steel Pole
